Model: M0198653
This compact size Thermo-Hygro-Anemometer with new structure and new utility patent features remote vane for easy and simple operation: one hand reaching the air source while other hand holding the meter to see real-time reading.
This device measures wind speed, temperature, RH, Dew point (DP), Wet Bulb Temperature (WB), Wet Bulb Global Temperature (WBGT), Heat Index (HI) and Air Volume. it is designed up to 10 square area and 10 round area size for for quick calculating of air volume and comes with USB cable and CD software for transferring parameters online (real time) to computer for further analysis.
Application:
- Used for HVAC (Heat Ventilation Air-Conditioning & Refrigeration) and Home inspection for examining the heating and air conditioning systems
- Construction and industrial inspection
- Firefighting: to monitor wind speed for deploying ladder location
- Outdoor weather monitoring to avoid unnecessary heat stroke while training outside
Features:
- Compact size, new structure, NEW UTILITY patent

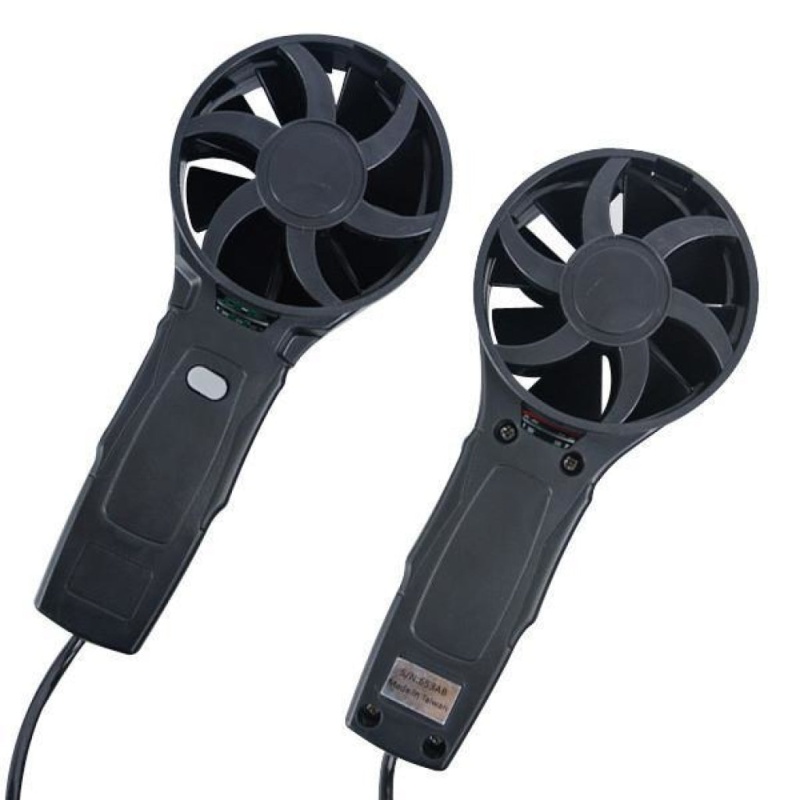

- Remote vane with one button to start/stop the operation or freeze reading while measuring
- Two smart ways to activate/stop measurement
- Measures Wind Speed, Temperature, RH, Dew point (DP), Wet Bulb Temperature (WB), Wet Bulb Global Temperature (WBGT), Heat Index (HI) and Air Volume
- Store up to 10 areas for quicker air volume measurement
- Designed to monitor Wet Bulb Global Temperature (WBGT) and Heat Index for heat stroke prevention
- USB software that allows online logging of above parameters to personal computer for further analysis
- Easy to enter air source area for air volume calculation
- All parts are made and manufactured in Taiwan
- Complies with all essential health and safety requirements set out in European Directives (CE marking)
Specifications:
- Temperature Range : -10~50°C( 14~122°F)
- Air Velocity
- Range: 0.4~35ms, 80~6900ftm
- Accuracy: +/-2% of FS
- Wind Unit: m/s, ftm, kmh, knt, bft, m/h
- Air Volume measurement: 0~9999m3/S
- Relative Humidity (RH)
- Range : 5.0~95.0%
- Accuracy : ±3% RH( at 25°C, 30 ~ 95%RH) ±5% RH (others)
- Function: Dew Point Temp (DP), Wet Bulb Temperature (WB), Wet Bulb Global Temperature (WBGT), Heat Index Temperature (HI)
- Maximum/Minimum Reset Recall function
- Memory: 99 points
- USB interface
- with Backlight function
- Average: Store 10 areas, 99 points average
- Power: AAA x 3 pieces
- Operating Temperature RH: 0~50°C, <80 % RH
- Size: 160 x 55 x 29 mm (meter only) , 181 x 76 x 43 mm (vane only)
