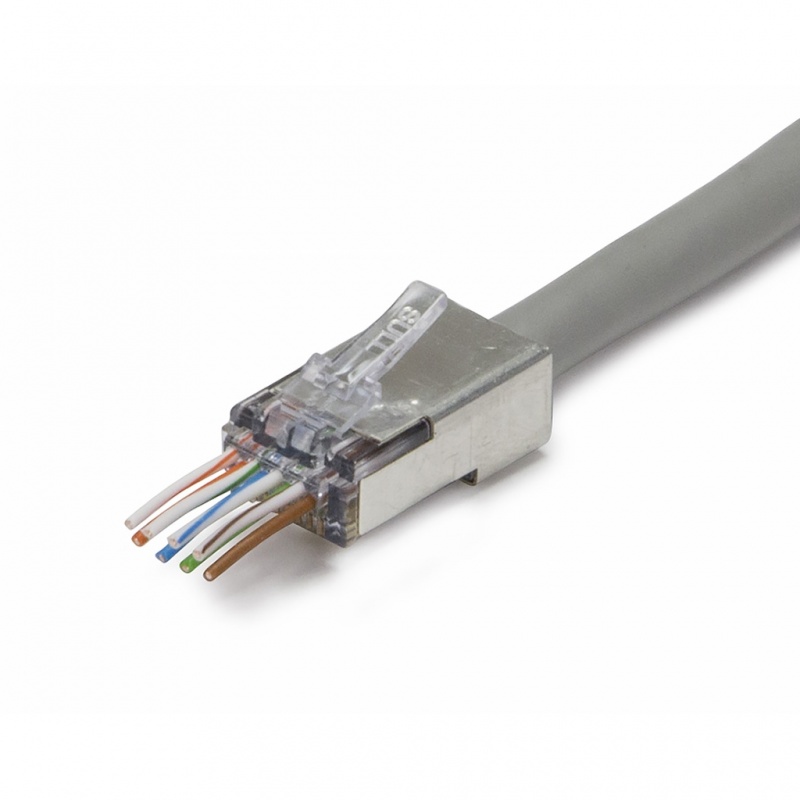

The 202050J shielded, patented ezEX-RJ45 connector from Platinum Tools is designed for larger cables and conductors. They feature a unique integrated Hi-Lo stagger load bar and allow �big� conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.
This connector is typically used with Cat6/6A and can only be terminated with the EXO Crimp Frame and EXO-EX Die (100061C), found here: .
Features:- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Shielded 5e/6/6A complaint
- 50 micron gold plated contacts
- Made in the USA
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents
- Quantity: 50 connectors
- Insulation Diameter (Conductor) - Size range: 0.039� � 0.044� (1.0 �1.12mm)
- Max Outer Diameter: 0.280� (7.1mm)
- Solid or Stranded: 24-22 AWG
- Compliance: TAA, TIA, RoHS, UL & FCC
Specifications:
