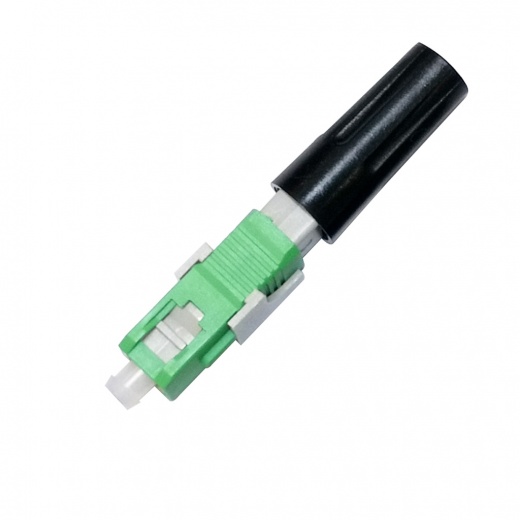

Tempo Sc/Apc Mechanical Connector

SKU: TTS-TEM-SCAPCMCM
Unit Price
Quantity
Subtotal
US$ 23.53
US$ 23.53
US$ 23.391%
2
US$ 23.311%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Storage Temperature
-40 ̊C ~ +85 ̊C
Operating Temperature
-40 ̊C ~ +85 ̊C
Tensile Strength
30N, ∆ IL ≤ 0.3 dB
Fiber Type
Singlemode (G.657B3)
Cable
3.0mm Round Cable & 3.0 x 2.0mm Drop Cable
Standards
TIA/EIA 58-B.3 & UL-94V-0
Quantity
1
Durability
500 times, ∆ IL ≤ 0.3 dB
Typical Insertion Loss
≤ 0.2dB
Max Insertion Loss
≤ 0.4dB
Max Return Loss
≥ 45 UPC, ≥ 55 APC dB
Re-assembly
Five Times
Ferrule Material
Ceramic
Ferrule Diameter
2.5mm
Ferrule End Face
0 ̊ UPC, 8 ̊APC
Fiber Geometry
Core diameter (9�m), coating (125�m)
Operating Wavelength
1310nm to 1625nm
Connection Method in Port
Push - Pull
Cleaving Fixture
One supplied for every 10 connectors
Average Assembly Time
< One Minute
Description

The SCAPCMCM Mechanical Connector from Tempo is designed for fast and simple field termination of 3mm jacketed single-mode fiber-optic cables without polishing or epoxy.

The Mechanical Connector is made with precision and high-quality Zirconia ferrules and provides a highly reliable low back reflection, low insertion loss connection.

Features:
  • Less than one minute termination time
  • Low insertion loss � typically ≤ 0.2dB
  • Return loss ≥ 55dB (APC) and ≥ 45dB (UPC)
  • Up to five re-assembly types are possible
  • Ceramic ferrule
