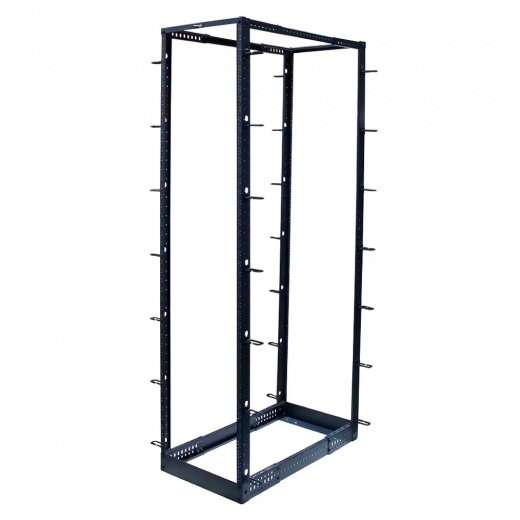

Wavenet - 4-Post 45U Open Frame Floor Rack Organizes 19” Network & Data Rack Equipment, Capacity 800Lbs – Black

SKU: CMP-3004-N
  • Airflow: Open frame server racks allow for unrestricted airflow, preventing heat build-up. The proper cooling is conducive to the running of the whole system.
  • Wide Compatibility: This item meets the compliance standards and specifications for EIA/ECA-310-E to ensure compatibility with 19-inch products and adjustable mounting depth from 22 to 40 inches.
  • Easy Access: You can access every piece of equipment and route cables freely in every direction you want. And all are visible to you for real-time monitoring.
  • Durable Construction: Heavy-duty steel construction with powder paint finish holds up to 42 units of equipment, comes with numerated threaded mounting rails, and with vertical PDUs button-hole for best mounting.
  • Cost: Open frame server racks are a cost-effective way to manage equipment, compared to enclosed racks. The cost of producing and shipping is less than those of closed cabinets or server racks.
Unit Price
US$ 410.32
US$ 410.32
US$ 407.861%
US$ 406.421%
Congratulations! You got a great price!
Add to cart Added
Floor Standing
SPCC Cold Rolled Steel

The fact that you may run the cables with obstacles from doors and panels won’t frustrate you when using an open frame rack. It is just formed by 4-post racks with no limitations to each orientation. With this rack, you will no longer consider whether it can contain all your applications within the space anymore.

The 45U rack is compatible with all standard 19-inch equipment that supports 4-post mounting. The mounting depth is adjustable from 22 to 40 inches. Numbered mounting holes and button-hole mounting for vertical PDUs and cable managers - simplify equipment installation.

This rack features heavy-duty steel construction, with a powdered coated finish that ensures that they keep all edges and surfaces smooth, greatly reducing the possibility of injury or wear on cable jackets.

The open-rack is easy to assemble using the included one type of screw connection. The four vertical mounting rails have threaded holes and cable management slots for securing equipment. With compact size, open frame server racks come at the right time to help stay organized cost-effectively.

Compatible with: 19" wide equipment
Adjustable mounting depth 22” to 40”
Number markings on rails #12-24
Round threaded/numbered mounting holes
Toolless mounting for vertical PDUs and cable managers
Material: Cold rolled steel with a black powder finish
Self-squaring design with bottom anchoring holes
Maximum capacity: 800lbs(363kg)
Product ships unassembled

Package Includes:
4 x Vertical Rail
2 x Bottom Corner Section
2 x Bottom Center Section
2 x Top Left Corner Section
2 x Top Right Center Section
2 x Top Center Section
2 x Base Bracket
2 x Top Bracket
36 x M8 Bolt
28 x Cable Management Hook
#12-24x5/8” Phillips Screws
1 x M8 Wrench
