The 3399 Triplett Fox & Hound Premium is a lightweight easy to use wire tracing kit, constructed with high quality materials. The portable design allows you to trace wires whenever needed.
Find non-energized wires in walls, ceilings, and floors. The inductive tracer with two probes indicates magnetic fields with audio and visual signals. A built-in filter helps suppress 60 Hz and high-frequency noise. The tone generator has three tones for guiding the tracer to wires.

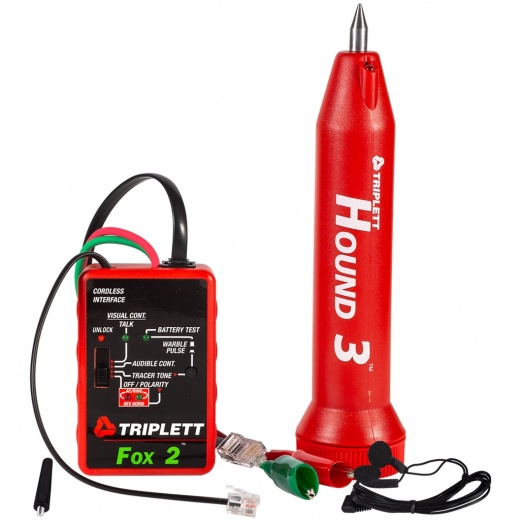

The Triplett Fox & Hound wire and cable tracing kit consists of the versatile Fox 2 Tone Generator (Toner) and the high-performance Hound 3 Inductive Amplifier (Probe).
Features:- The Fox & Hound wire tracing kit consists of a versatile Fox 2 Tone Generator (Toner) and a high-performance Hound 3 Inductive Amplifier (Probe). This kit includes Fox 2, Hound 3, RJ-11 to RJ-45 adapter, plastic duckbill, metal duckbill, headphones, and a sturdy weatherproof carry case. 3-year warranty.
- The Fox 2 is a battery-operated handheld multi-function Toner that generates multiple tones (Pulse or Warble), performs some basic telephone line tests (loop mA, line polarity, and ringing voltage), provides a visual and audible continuity test, and integrates our own True Trace and TripLatch tests while providing overload protection up to 120 VAC.
- The Hound 3 is a battery-operated handheld lightweight Probe, with a thumbwheel Sensitivity control and Signal Strength indicator LED. It improves on previous designs with built-in LED headlights to illuminate dark areas and reduce fluorescent light noise, a bandpass filter to suppress unwanted frequencies, an earphone jack for noisy or quiet work areas, and an easy-access battery cover.
- This Wire tracing kit is a lightweight easy to use kit, constructed with high-quality materials. Portable design allows you to trace wires whenever needed. Find non-energized wires in walls, ceilings, and floors. An inductive tracer with two probes indicates magnetic fields with audio and visual signals. Tracer filter helps suppress 60 Hz and high-frequency noise. The tone generator has three tones for guiding the tracer to wires.
- The toner can generate a signal up to 1000 feet
- Operating Frequency (RF): 400kHz to 500kHz
- Operating Frequency (AF): 800Hz to 2400Hz
- Output Voltage (RF): adjustable 5vpp to 30vpp (open circuit)
- Output Voltage (AF): fixed 10vpp (open circuit)
- Tracer Tone: Warble or Pulsed, High or Low Pitch
- Max. AC/DC Live Voltage: 250V
- Continuity Test: upto 5,000 ohms with audible beeper
- AC Voltage Test: 30VAC to 250VAC
- DC Voltage Test: Positive applied to red test lead 40VDC to 250VDC
- Dimensions: 3.5 x 4.5 x 1.5"
- Weight: 7 oz.
- Operating Frequency (RF): 400kHz to 500kHz
- Signal Indicators: Speaker outputs Tracer signal and LED indicates signal strength
- Earphone Jack: Accepts 1/8" mono or stereo earphone plug (mutes speaker)
- Headlights: 2 High Brightness White LEDs
- Speaker: 1.5" Mylar cone with Alnico magnet
- Dimentions: 1-7/8" dia at speaker; 1-3/8" dia at body; 7.5" long
- Weight: 9 oz.
- Fox 2
- Hound 3
- RJ-11 to RJ-45 Adapter
- Plastic Duck Bill
- Metal Duck Bill
- Headphones
- Weatherproof Carry Case
Specifications:
Hotwire Hound Specifications:
Kit Includes:
Fox & Hound 2 w/ Hound 3 User Manual
