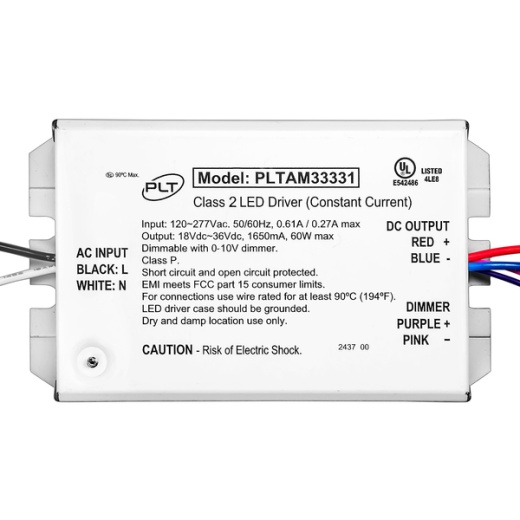

Led Driver - Dimmable - 60 Watt - 1650Ma Output Current

SKU: TBB-PLT-13210
  • PLT's Constant Current LED Driver (SKU: PLT-13210) features a robust 60-Watt power output for reliable performance
  • Delivers a steady 1650mA output current, suitable for various LED applications
  • Designed for indoor use, it easily mounts in tight spaces with side leads
  • Offers up to 89% efficiency and a lifespan of 85,000 hours, reducing long-term energy costs
  • Compatible with 120-277V input, it supports 0-10V dimming for versatile lighting control
  • 0-10V dimming allows for smooth light level adjustment
  • 85,000 life hours deliver long term performance
  • 89 percent efficient when at full load
  • 4kV surge protection helps safeguard against voltage spikes
  • UL rated for damp locations
  • Ideal for commercial indoor lighting, retail and hospitality spaces, warehouses, and distribution centers
Unit Price
Quantity
Subtotal
US$ 68.81
US$ 68.81
US$ 68.401%
2
US$ 68.161%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Warranty
5-Year Limited
Mounting
Remote Mount
Product Type
Constant Current LED Driver
Efficiency
up to 89%
Input Voltage
120/208/240/277
IP Rating
IP-20
Power Factor
>.90
Operating temp
-40 Deg. to 140 Deg. F
Lighting Technology
LED
Surge Protection
4kV
Maximum Wattage
60 Watt
Ratings and Certifications
Damp Location/Indoor/RoHS/UL/UL Class 2
Life hours
85,000
Case quantity
20
Dimmable
Yes
Dimming type
0-10 Volt
Lead Type
Side Leads
Current Type
Fixed
Max Output Current
1650mA
Max Output Voltage
36
Min Output Voltage
18
Barcode
842821128774
Description

Effectively power your lighting design with the PLT LED driver. This dimmable driver delivers a robust 1650mA output current and 60 Watts of power, making it perfect for constant current LED applications. With a wide input range of 120-277 Volts and an output of 18-36Vdc, it provides compatibility with various electrical systems, offering flexibility for diverse installation requirements.

The driver is ideal for powering a range of LED fixtures including LED panel lights to achieve quality illumination in offices and commercial spaces. This driver excels at converting energy to power track lighting systems, enhancing retail displays and highlighting architectural features with precision.

Its compact design allows for easy integration into existing setups or create a lighting design for new construction projects around this driver. Equipped with protection against over-voltage, over-current, and short circuits, this 60-Watt driver provides reliable operation and extends the lifespan of your LED fixtures.

Install PLT's LED driver (PLT-13210) for consistent, efficient power for your constant current LED products.

Shipping specs
Weight
1.28 lbs
Dimensions
3" x 1.38" x 5"
Shipping from
This product is shipped from our supplier's warehouse in Mesquite, TX, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
Return policy
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
