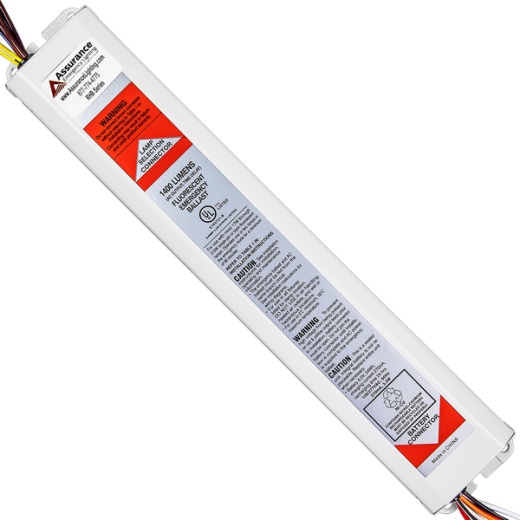

Assurance Emergency Lighting Bal1400actd - Emergency Backup Ballast
SKU: TBB-AEL-10011
- Works with or without an AC ballast to convert new or existing fluorescent fixtures in to unobtrusive emergency lighting.
- Operates one lamp in the emergency mode for a minimum of 90 minutes.
- Provides a maximum initial lumen output of 1400 lumens.
- Dual 120/277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- 6V long life, maintenance-free, rechargeable sealed NiCd battery.
- Internal solid-state transfer switch automatically connects the internal battery to fluorescent lamp for minimum 90-minute emergency illumination.
- Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Time delay enhancement to overcome end-of-life circuit protection.
- Suitable for installation inside, on top, or in remote of the fixture.
- Can be used in both switched and unswitched fixtures.
- UL Listed for factory or field installation.
- Durable painted steel construction in white finish.
- Compact design fits most fluorescent fixtures.
- Compatible with most one-, two-, three-, and four-lamp electronic standard and dimming AC ballasts.
- Operates two 14W-28W T5, one 39W-54W T5HO, two 17W-40W T8, one 34W-215W T12, two 13W-26W 4-pin compact, two 18W-36W or one 18W-50W 4-pin long compact fluorescent lamps.
- Operates one Type A 7-18W TLED Lamps
- Refer to lamp compatibility chart on spec sheet for a complete list of lamps.
