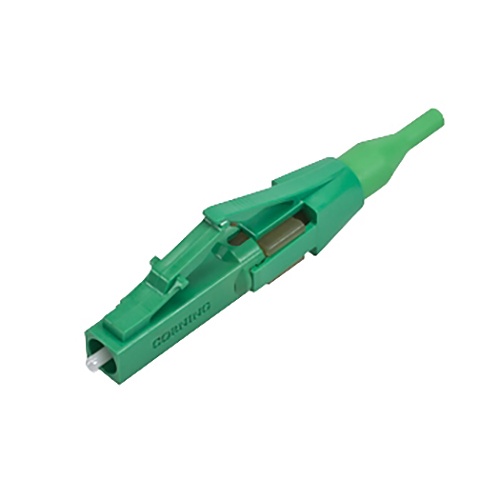

Corning Lc/Apc Unicam Connector, 8.3Um, Os2, Green, 95-200-94

SKU: CBW-31LC-01395

Keyed: No
Product Type (FOJP): Field-Installable Connectors
Technology: No-Epoxy/No-Polish
Boot Color: Green
Connector Ferrule Material: Ceramic
Connector Housing Color: Green
Connector Housing Material: Composite
Design - Connector Type: LC
Connector Durability: = 0.2 dB change by 500 matings, FOTP-21
Nominal Fiber Outer Diameter: 125 µm
Temperature Cycling: = 0.3 dB IL, -40 to +75 °C, 21 cycles
Tensile Strength 900µm Cable (Metric): 4.9 N change = 0.2 dB. FOTP-6
Tensile Strength 900µm Cable (US): 1.1 lb change = 0.2 dB. FOTP-6
Tensile Strength Jacketed Cable (Metric): 44 N change = 0.2 dB. FOTP-6
Tensile Strength Jacketed Cable (US): 11 lb change = 0.2 dB. FOTP-6
Insertion Loss, Max_ (Connector): 0.75 dB
Insertion Loss, Typical (Connector): 0.4 dB
Polish: APC
Reflectance (Connector): ≤ -40 dB
Temperature - Operation: -40 to 75 °C exceeding EIA/TIA 568-B.3
Temperature - Operation: -40 to 167 °F exceeding EIA/TIA 568-B.3
Reflectance values for single-mode are for 18 to 26 °C
One 900 µm boot, one 2.0/1.6 boot, and one 2.9 mm boot included.

Unit Price

Quantity

Subtotal

US$ 42.04

US$ 41.791%

US$ 41.641%

Congratulations! You got a great price!

Options

Color

Green

Warranty

1 Year

Connection

LC/APC Simplex Connector

Connector

Green

Part #

31LC-01395

Description

Product Description

Corning Cable Systems UniCam High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision connectors guarantee exceptional insert loss 0.2 dB typical/0.5 dB maximum per connector (single-mode).

Connectors have passed EIA/TIA 568-B.3, are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20, & free of hazardous substances according to RoHS 2002/95/EG

Shipping specs

Weight

0.04 lbs

Shipping from

This product is shipped from our supplier's warehouse in Livermore, CA, United States

Our guarantee

This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.

Return policy

A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
