Klein Digital Differential Manometer

SKU: TTS-KLN-ET180
Out of stock
Out of stock
Unit Price
Quantity
US$ 140.33
Out of stock
Options
Klein Tools Digital Differential Manometer Instructions
Description

“This new addition to Klein Tools HVAC product line is an essential tool for every HVAC professional,” says Sabrina Kalsi, product manager at Klein Tools. “It measures static and differential pressure, as well as identifying pressure drops at filters and pressure loss in ducts. Tapered ports allow for a variety of tubing size attachments, and the magnet on the back allows professionals to free up their hands for easier operation.”

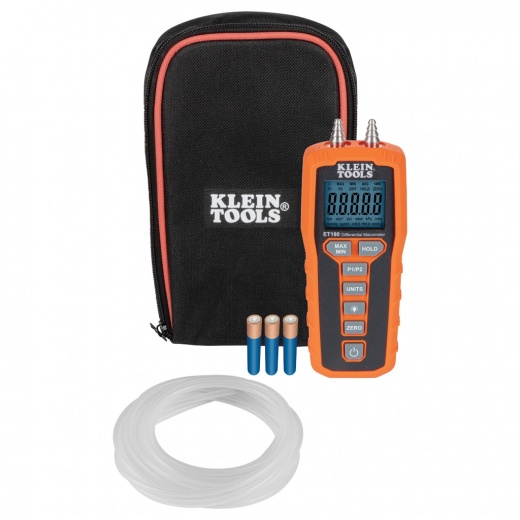

The ET180 Digital Differential Manometer from Klein Tools measures air and gas pressure for port 1, port 2, and measures the differential between the ports. Easily toggle between units: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O. Large, backlit LCD shows minimum, maximum, and average values. Magnet on back for hands-free operation.

Features:
  • Digital Manometer measures air and gas pressure for ports P1, P2, and differential
  • Range of +/- 60 inH2O and full scale accuracy of +/-1.5-Percent
  • Strong magnet on back for hands-free operation
  • Units measured: inH2O, bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, ftH20, and cmH2O
  • Calculates minimum, maximum and average values
  • Large LCD is backlit for easy viewing in low light conditions
  • Auto-power off feature conserves battery life
  • Hold button locks current reading on the display
  • Silicon tubing, 3 x AAA batteries, and storage pouch included

  • Specifications:
  • Type: Differential Pressure
  • Application: Measure Static and Differential Pressure
  • Special Features: Magnet on Back of Housing
  • Modes: P1, P2, Differential
  • Pressure Measurement Range: +/- 60 inH2O
  • Maximum Pressure (psi): 2.16 PSI
  • Maximum Pressure Reading (wc): 60.0
  • Minimum Pressure Reading (wc): -60.0
  • Accuracy: +/-1.5% Full Scale
  • Measurement Units: bar, oz/in2, psi, mbar, kPa, inHg, mmHg, kg/cm2, inH2O, ftH20, and cmH2O
  • Number of Ports: 2
  • Connector Type: Tapered Stainless Steel Ports from 1/8'' to 5/15''
  • Temperature Range: 32° to 122° F (0° to 50° C)
  • Display: Backlit LCD
  • Batteries: 3 x AAA
  • Low Battery Indicator: Yes
  • Auto-Power Off: Yes
  • Material: ABS, Stainless Steel
  • Overall Length: 2.47'' (6.3 cm)
  • Overall Height: 6.19'' (15.7 cm)
  • Overall Width: 1.38'' (3.5 cm)
  • Included: 6.56' (2 m) x 1/8'' (3 mm) Inside Diameter Silicon Tubing, 3 x AAA Batteries, Pouch, Instruction Manual
  • Standard: Conforms to EN 61326-1:2013; EN61326-2-3:2013; CE and UKCA Certified
  • Weight: 7.2 oz (202 g)

  • Klein Tools Digital Differential Manometer Instructions
    Shipping specs
    Weight
    7.2 lbs
    Shipping from
    This product is shipped from our supplier's warehouse in Plymouth, MI, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
