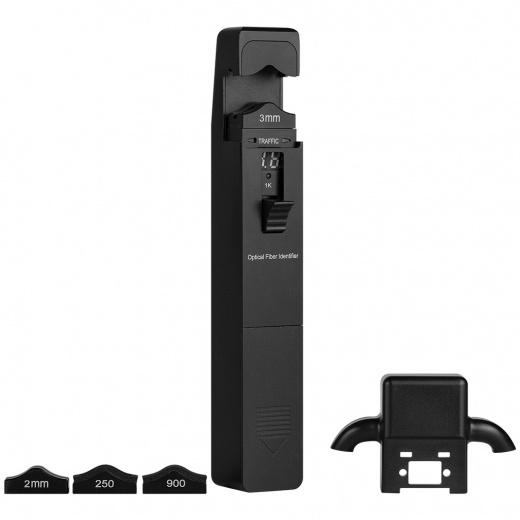

Jonard Optical Fiber Identifier

SKU: TTS-JON-OFI-50
Unit Price
Quantity
Subtotal
US$ 762.06
US$ 762.06
US$ 757.491%
2
US$ 754.811%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Jonard OFI-50 User Instructions
Description

Jonards OFI-50 is designed to quickly identify the direction of transmitted fiber and display the relative core power without damaging the fiber. This fiber identifier is the perfect tool for identifying fiber in network systems without disrupting the network.

Features:
  • Easy-to-use one key operation
  • Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with an audible warning
  • The display shows you the relative core power clearly
  • Includes 3 mm, 2 mm, 900 nm (0.90 mm) and 250 nm (0.25 mm) adapters for different sized fiber optic cables
  • Included sunshade protects the fiber optic cable from interference to provide more accurate readings
  • Durable metal housing provides long life and durability
  • LED indicator lets you know when the battery is running low

  • Specifications:
  • Identified Wavelength Range: 800-1700 nm
  • Identified Signal Type: CW, 270Hz�5%,1kHz�5%,2kHz�5%
  • Detector Type: �1mm InGaAs 2pcs
  • Adapter Type: �0.25 (Applicable for Bare Fiber), �0.9, �2.0 , and �3.0
  • Signal Direction: Left & Right LED
  • Signal Direction Test Range: -46~+10 dBm (1310 nm, CW/0.9 mm bare fiber), -50~+10 dBm (1550 nm, CW/0.9 mm bare fiber)
  • Signal Frequency Display: 270 Hz, 1 kHz, 2 kHz
  • Insertion Loss: 0.8 dB (1310nm), 2.5 dB (1550nm)
  • Battery Type: 9V

  • Included:
  • Fiber Identifier
  • 3 mm, 2 mm, 900 nm (0.90 mm), and 250 nm (0.25 mm) adapters
  • Sunshade
  • Carrying pouch

  • Jonard OFI-50 User Instructions
Shipping from
This product is shipped from our supplier's warehouse in Plymouth, MI, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
