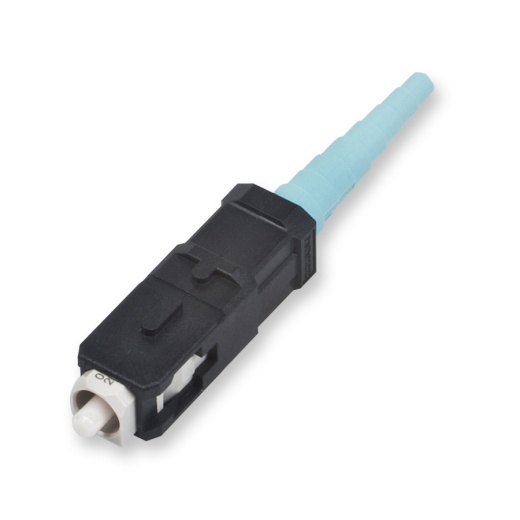

Introducing Corning UniCam SC Connector
Looking for a fast, easy field-termination solution for your fiber-to-the-workstation applications? The Corning UniCam SC connector 50 Om3/4 Aqua 95-050-41-x is the perfect choice. With its high-precision mechanical splice technology, you can install an LC, SC or ST compatible connector in about 50 seconds to one minute with the UniCam High-Performance Tool Kit. This product is ideal for applications where setup and teardown time is critical.
Key Features and Benefits
The Corning UniCam SC connector 50 Om3/4 Aqua 95-050-41-x offers a range of features that make it an ideal choice for your fiber optic networks. These include a fiber category of 50 µm MM (OM3/OM4 compatible), keyed design for secure connections, and a ceramic connector ferrule material for durability. The connector housing is made of composite material and has a black color, with an aqua boot color for easy identification.
Performance Guaranteed
The Corning UniCam SC connector 50 Om3/4 Aqua 95-050-41-x comes with a 100 percent yield guarantee, ensuring that you get the performance you need. It has a broad operating temperature range of -40°C to +75°C, exceeding EIA/TIA 568-B.3 standards. The connector has a maximum insertion loss of 0.5 dB and a typical insertion loss of 0.1 dB, with a reflectance of -26 dB.
Technical Specifications
The Corning UniCam SC connector 50 Om3/4 Aqua 95-050-41-x has a range of technical specifications that make it suitable for a variety of applications. These include a nominal fiber outer diameter of 125 µm, temperature cycling of = 0.3 dB IL, -40° to +75°C, 21 cycles, and tensile strength of 4.9 N. change = 0.2 dB. FOTP-6.
Warranty and Part Number
The Corning UniCam SC connector 50 Om3/4 Aqua 95-050-41-x comes with a manufacturer defect limited warranty. The part number is 31SC-31195, making it easy to identify and order.
