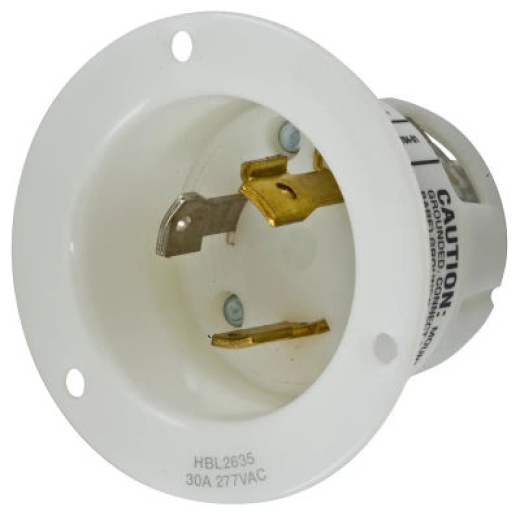

Hubbell Hbl2635 Ac Flanged Inlet Nema L7-30 Male White

SKU: SOL-5814
Unit Price
Quantity
Subtotal
US$ 63.40
US$ 63.40
US$ 63.021%
2
US$ 62.801%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Description
Amperage 30 Amp
Volts 277 Volts
Poles and Wires 2 Pole, 3 Wire Grounding
Configuration Type NEMA L7-30P
Terminal Retainer Material Clear Polycarbonate
Blade Material Brass
Terminal Clamp Material .08 in. (2) Steel Nickel Plated
Terminal Screw Material #10-32 Brass, Multiple Drive
Ground Screw Material #10-32 Brass, Multiple Drive
Flanged Casing Material Natural White Nylon
Mounting Screw Material Nickel-plated Brass Round head screws
Dielectric Voltage Withstand 2,000 Volt Minimum
Current Interrupting Certified for Current Interrupting at Full Rated Current
Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75
Terminal Accommodation #16 AWG to #8 AWG
Terminal Identification Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperature Maximum Continuous 75°C Minimum -40°C (without impact)
Certifications UL, CSA Listed.
Shipping from
This product is shipped from our supplier's warehouse in Creedmoor, NC, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
