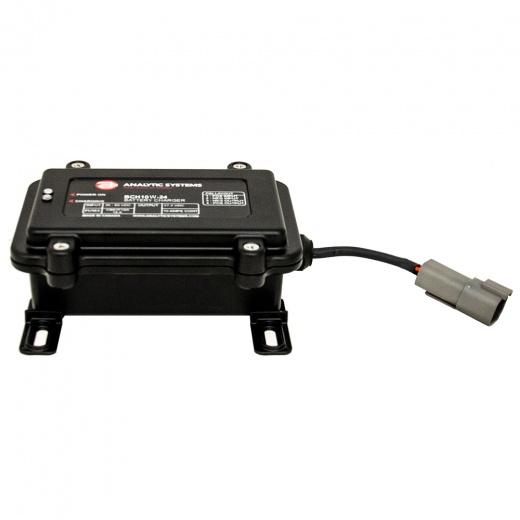

Analytic Systems Waterproof IP66 DC Battery Charger 10A, 24V Out, 30-80V In, Ruggedized

SKU: CWR-77031
  • Waterproof and EMC shielded IP66 rated enclosure for use in harsh environments
  • High efficiency design with more than 91% efficiency and up to 544 watts of power
  • Compact size and easy mounting with Deutsch connector on a pigtail input/output cable
  • Ruggedized with wide temperature range operation from -40 to +55 degrees C
  • Two year warranty (parts and labor) for reliable and long-lasting performance
Unit Price
Quantity
Subtotal
US$ 770.63
US$ 770.63
US$ 766.011%
2
US$ 763.301%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Charger Output - Amps
10a
Portable
No
Charger Input - Voltage
30-80v
Charger Output Voltage
24v
Description

Reliable and Efficient Battery Charging Solution

The Analytic Systems Waterproof IP66 DC Battery Charger 10A, 24V Out, 30-80V In, Ruggedized is a high-performance charging solution designed for use in heavy equipment, marine, industrial, rail or alternative energy environments. With its waterproof and EMC shielded IP66 rated enclosure, this charger is perfect for use in harsh environments where reliability is crucial. The charger supplies up to 10 amps of charging current at 24 volts from any higher voltage between 30 and 80 volts DC, making it an ideal solution for a wide range of applications.

Advanced Features for Maximum Performance

The BCH10 Step Down series of Battery Chargers features advanced technologies for maximum performance and reliability. The all surface mount high frequency design offers higher reliability, higher efficiency (more than 91%), more power (up to 544 watts at 24 VDC Out), and minimum size. The charger also features reverse input protection, reverse battery connection protection, output over-voltage protection, and spark-free connection to the battery.

Ruggedized Design for Extreme Environments

The Analytic Systems Waterproof IP66 DC Battery Charger 10A, 24V Out, 30-80V In, Ruggedized is designed to operate in extreme environments. The charger is rated for operation from -40 to +55 degrees C and has been tested and confirmed to meet MIL-STD-461F for radiated and conducted emissions. It is also designed to meet MIL-STD-810G for shock and vibration, making it an ideal solution for use in harsh environments.

Convenient and Easy to Use

The charger features a compact size and easy mounting design, making it easy to install and use. The Deutsch DT04-4P connector on a pigtail or MIL connectors ensures reliable and secure connections. The charger also features ‘Output ON’ and “Charging” LED indicators, providing visual feedback on the charging status.

Warranty and Support

The Analytic Systems Waterproof IP66 DC Battery Charger 10A, 24V Out, 30-80V In, Ruggedized comes with a two-year warranty (parts and labor), providing reliable and long-lasting performance. With its ruggedized design and advanced features, this charger is an ideal solution for demanding applications.

Shipping specs
Weight
2.1 lbs
Dimensions
9" x 8" x 5"
Shipping weight
2.1 lbs
Shipping dimensions
8" x 5" x 9"
Shipping from
This product is shipped from our supplier's warehouse in NJ, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
Return policy
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
