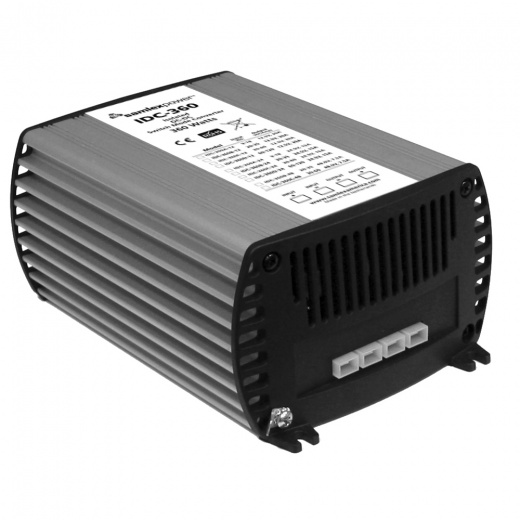

Samlex 360W Fully Isolated Dc-Dc Converter - 30A - 30-60V Input - 12.5V Output

SKU: CWR-67266
Out of stock
Out of stock
Unit Price
Quantity
US$ 365.12
US$ 418.60
Out of stock
Options
Barcode
622988067327
Brochure Literature
Description

360W Fully Isolated DC-DC Converter - 30A - 30-60V Input - 12.5V Output

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360C-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 30 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360C-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features:

Specifications:

Applications:

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • CE Approved
  • 2 Year Warranty
  • Input: 30-60 VDC
  • Output: 12.5 VDC
  • Watts: 360
  • Amps: 30 Amps
  • Weight: 3.1 (lbs)
  • Weight: 1.4 (kg)
  • Dimensions: 5.23 x 7.5 x 3.27 (in)
  • Dimensions: 132.8 x 190.5 x 83 (mm)
  • Safety: CE
  • Warranty: 2 Year Limited
  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
  • Shipping specs
    Weight
    3.30 lbs
    Dimensions
    9" x 6" x 4"
    Shipping weight
    3.30 lbs
    Shipping dimensions
    6" x 4" x 9"
    Shipping from
    This product is shipped from our supplier's warehouse in , NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
