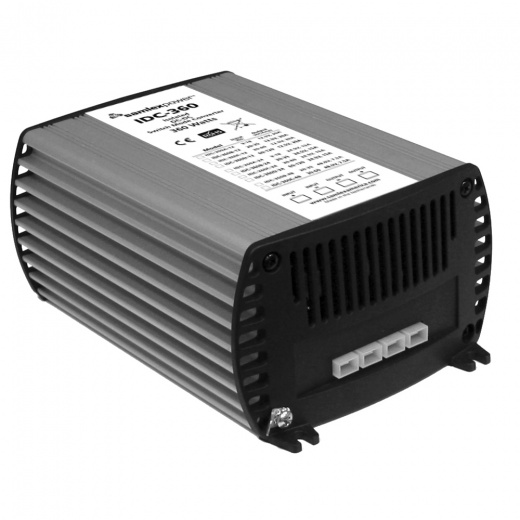

Samlex 360W Fully Isolated Dc-Dc Converter - 30A - 20-35V Input - 12.5V Output

SKU: CWR-67265
Out of stock
Out of stock
Unit Price
Quantity
US$ 494.86
Out of stock
Options
Barcode
622988067310
Brochure Literature
Description

360W Fully Isolated DC-DC Converter - 30A - 20-35V Input - 12.5V Output

IDC-360 series is a complete line of high efficiency 360 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-360B-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 20-35 Volts and rated output current of 30 Amps. Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-360B-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/EC.

Features:

Specifications:

Applications:

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • CE Approved
  • 2 Year Warranty
  • Input: 20-35 VDC
  • Output: 12.5 VDC
  • Watts: 360
  • Amps: 30 Amps
  • Weight: 3.1 (lbs)
  • Weight: 1.4 (kg)
  • Dimensions: 5.23 x 7.5 x 3.27 (in)
  • Dimensions: 132.8 x 190.5 x 83 (mm)
  • Safety: CE
  • Warranty: 2 Year Limited
  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
  • Shipping specs
    Shipping weight
    1.2 lbs
    Shipping dimensions
    5" x 3" x 7"
    Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
