Samlex 100W Fully Isolated Dc-Dc Converter - 4A - 30-60V Input - 24V Output

SKU: CWR-67256
Out of stock
Out of stock
Unit Price
Quantity
US$ 183.25
US$ 188.50
Out of stock
Options
Description

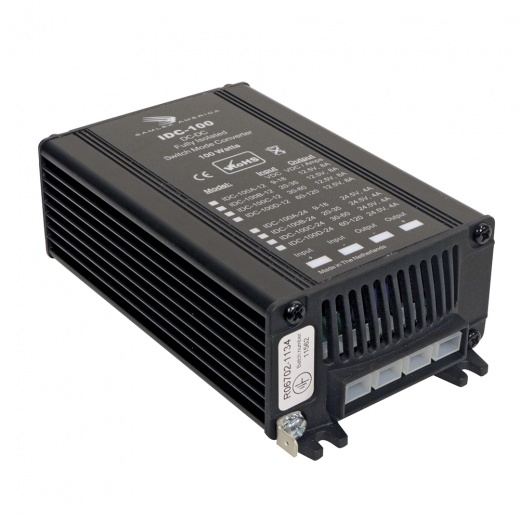

100W Fully Isolated DC-DC Converter - 4A - 30-60V Input - 24V Output

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100C-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 4 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100C-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features:

Specifications:

Applications:

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • CE Approved
  • 2 Year Warranty
  • Input: 30-60 VDC
  • Output: 24 VDC
  • Watts: 100
  • Amps: 4 Amps
  • Weight: 1.2 (lbs)
  • Weight: 0.54 (kg)
  • Dimensions: 6 x 3.5 x 1.9 (in)
  • Dimensions: 15.2 x 8.9 x 4.8 (cm)
  • Safety: CE
  • Warranty: 2 Year Limited
  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 24 Volt lighting systems
  • AM/FM sound systems
