Samlex 20A Non-Isolated Step-Down 24Vdc-12Vdc Converter

SKU: CWR-67246
Out of stock
Out of stock
Unit Price
Quantity
US$ 158.19
Out of stock
Options
Barcode
622988060243
Brochure Literature
Description

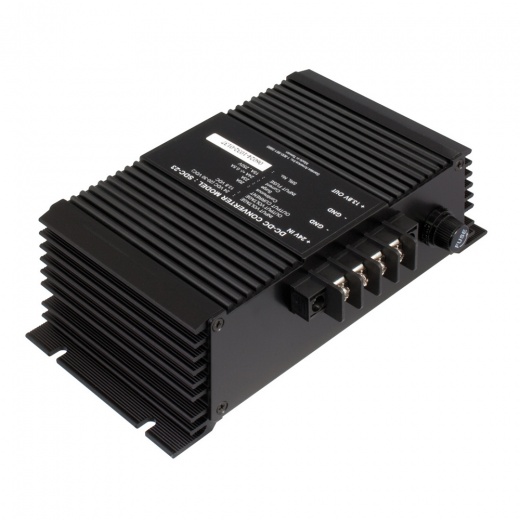

20A Non-Isolated Step-Down 24VDC-12VDC Converter

This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.

Features:

Specifications:

Applications:

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  • Advanced switchmode design
  • Mount in almost any location
  • Compact and light weight
  • Reverse polarity protection
  • High efficiency
  • Current limiting circuit
  • Overvoltage crowbar circuit
  • Non-Isolated for negative ground system
  • Input: 20-30 VDC
  • Output: 13.8 VDC
  • Amps: 20 Amps
  • Weight: 2.2 (lbs)
  • Weight: 1 (kg)
  • Dimensions: 7.75 x 4.75 x 2.4 (in)
  • Dimensions: 19.7 x 12.1 x 6.1 (cm)
  • Warranty: 2 Year Limited
  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
  • Shipping specs
    Weight
    2.3 lbs
    Dimensions
    8" x 6" x 3"
    Shipping weight
    2.3 lbs
    Shipping dimensions
    6" x 3" x 8"
    Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
