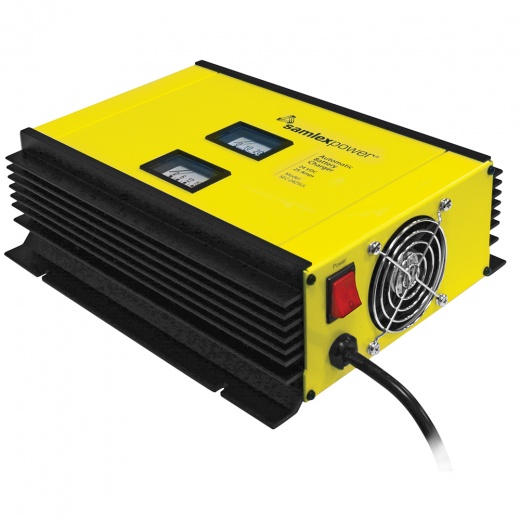

Samlex 25A Battery Charger - 24V - 2-Bank - 3-Stage W/Dip Switch & Lugs - Includes Temp Sensor

SKU: CWR-67192
Out of stock
Out of stock
Unit Price
Quantity
US$ 563.60
US$ 590.00
Out of stock
Options
Charger Output - Amps
25a
Charging Banks
2
Portable
No
Charger Input - Voltage
120/240v
Charger Output Voltage
24v
Barcode
622988083068
Brochure Literature
Description

25A Battery Charger - 24V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp Sensor

This advanced fully automatic three-stage 25 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit, reverse polarity and thermal overload protection. The unit allows charging of up-to 2 separate battery banks.

Features:

Specifications:

Applications:

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  • Switch mode technology for high efficiency, lightweight and quiet operation
  • Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell
  • Can charge 2 banks of batteries simultaneously, no isolator necessary
  • Can be used as a power supply or DC UPS when used in conjunction with a battery
  • User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz
  • User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of standalone and loaded Lead Acid Batteries
  • “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries
  • Voltmeter and Ammeter for monitoring
  • Fan cooled based on output current
  • Protections: Short circuit, overload, reverse battery connection and over temperature
  • Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively
  • Input: 120 VAC or 230 VAC
  • Output: 24 VDC
  • Amps: 25
  • Remote Control: 900-RC
  • Weight: 9 (lbs)
  • Weight: 4.1 (kg)
  • Dimensions: 13.03 x 9.6 x 3.82 (in)
  • Dimensions: 331 x 244 x 97 (mm)
  • Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
  • Warranty: 2 Year Limited
  • Test bench
  • Automotive
  • Marine
  • Communications sites
  • Battery back-up systems
  • Hobby
  • Shipping specs
    Weight
    11.00 lbs
    Dimensions
    17" x 11" x 6"
    Shipping weight
    11.00 lbs
    Shipping dimensions
    11" x 6" x 17"
