Samlex 30A Transfer Switch W/Inverter Quick Connect

SKU: CWR-67182
Out of stock
Out of stock
Unit Price
Quantity
US$ 327.03
US$ 342.30
Out of stock
Options
Barcode
622988079306
Brochure Literature
Description

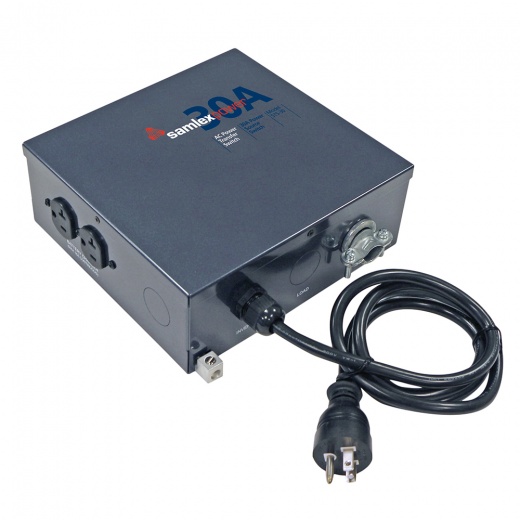

30A Transfer Switch w/Inverter Quick Connect

Whether you’re using solar, batteries or a generator to power your AC devices on the road, chances are, you’re going to want to use shore power when it’s available. Connect a Samlex Transfer Switch to your generator, or to your inverter/battery bank and have your AC source switched automatically to shore power when you plug in.

Features:

Specifications:

Applications:

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  • Automatically switches between 2 separate AC input sources: Utility Power and a Generator; or Utility Power and Inverter; or Generator and Inverter
  • Has rated capacity of 30 Amps at 120 VAC and is suitable for 30 Amp Utility Power Cord and Generator of up to 3.6 KVA capacity
  • Uses heavy duty Double Pole Double Throw (DPDT) relay for switching both the Line and Neutral
  • Can be installed on the line side of the main breaker panel allowing switching of the entire load or on the load side to only switch dedicated circuits
  • DIP Switch select to enable time delay of 20 to 25 sec when transferring to a generator
  • Comes with a standard North American power cord for convenient connection to 15 Amp NEMA5-15R receptacles on a generator or an inverter with up to 1800 VA capacity (Replace this cord with 30 Amp cord if full 30 Amp capacity is required)
  • NEMA5-20R Duplex Receptacle for convenient connection of battery charger
  • Output: 120 VAC
  • Amps: 30 Amps
  • Weight: 4.4 (lbs)
  • Weight: 1.99 (kg)
  • Dimensions: 9 x 8.25 x 3.25 (in)
  • Dimensions: 22.9 x 21 x 8.3 (cm)
  • Warranty: 2 Year Limited
  • Solar power systems
  • Emergency backup power
  • Mobile offices
  • Boats
  • Lighting systems
  • Recreational vehicles, camping
  • Automotive
  • Telecommunications
  • Field work/construction sites
  • Shipping specs
    Weight
    5.50 lbs
    Dimensions
    12" x 11" x 6"
    Shipping weight
    5.50 lbs
    Shipping dimensions
    11" x 6" x 12"
