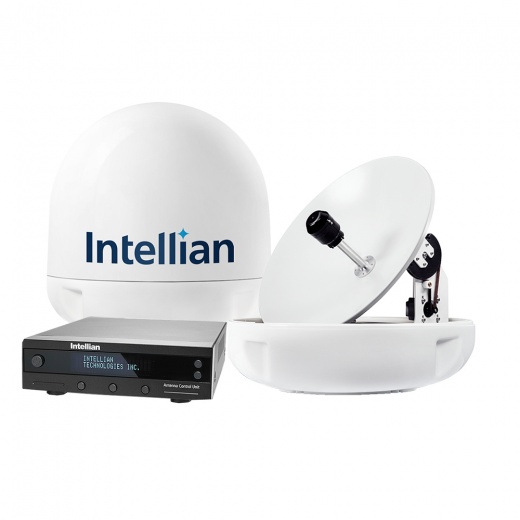

Intellian I5 Us System - 20.8" Dish W/All-Americas Lnb

SKU: CWR-58184
Unit Price
Quantity
Subtotal
US$ 6,143.42
US$ 6,143.42
US$ 6,106.561%
2
US$ 6,085.001%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Brand
Intellian
Dome Weight (lbs)
38 lbs
Voltage - Input Range (Volts)
9-30v
Service Coverage
DirecTV, Dish
Antenna Dish Diameter
21"
Barcode
8863100184504
Brochure Literature
Brochure Literature.pdf
(1.41MB)
Installation Guide
Installation Guide.pdf
(0.47MB)
Owners Manual
Owners Manual.pdf
(12.05MB)
Description
  • Radome Height: 62.7cm / 24.7"
  • Radome Diameter: 61cm / 24"
  • Reflector Diameter:53.5cm / 21"
  • Weight: 17.3kg / 38lbs
  • Operating Temp. Range: -25°C to +55°C / -13°F to +131°F
  • Storage Temp. Range: -40°C to +80°C / -40°F to +176°F
  • Water Ingress: IPX6
  • Approvals: CE / FCC
  • Warranty: 3 year parts and 2 year labor
  • Reception Frequency: Ku-band (10.712.75GHz)
  • Polarization: RHCP / LHCP
  • Minimum EIRP: 47dBW
  • Azimuth Range: 680L
  • Elevation Range: 0° to +90°
  • Ship's Motion Roll: ±25°, Pitch ±15°
  • Roll & Pitch Response Rate: 50° / sec
  • Turning Rate: 50° / sec
  • RF Output: Dual Output
  • Dimensions (WxDxH): 17.8cm x 21.7cm x 5.4cm / 7" x 8.5" x 2.1"
  • Weight: 1.2kg / 2.6lbs
  • Display: 2 line 20 character VFD module
  • GPS Interface: Built-in (NMEA 0183 GPS)
  • Power Requirement: 9.030.0V DC
  • Power Consumption: Typ. 30W, Max. 50W
    • Shipping specs
    Weight
    63 lbs
    Dimensions
    33" x 28" x 27"
    Shipping weight
    63 lbs
    Shipping dimensions
    28" x 27" x 33"
    Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
