Cellular/Wi-Fi World Band Galaxy Antenna

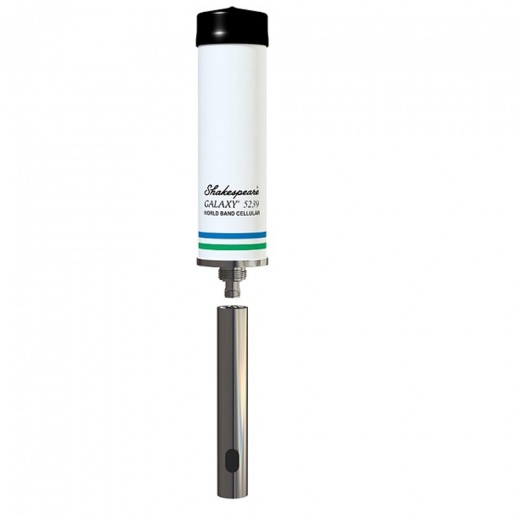

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.
Features:
Specifications:
Full Band (698 - 2700 MHz) Broadband2G/3G/4G and WLAN systemsWi-Fi 802.11n compatibleDesigned for marine useOmni-directional antenna 3-4 dB Gain.Easy to installIncludes FME CablesFrequency: 698-960/1700-2700 MHzInput Impedence: 50 ohmAntenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHzVSWR: ≤ 1.8Power Rating (W): 10Polarization Type: VerticalRadiation: Omni-DirectionalMaximum Power (W): 100Connector Type: N-femaleDimension: 9.25" H x 2.625" DColor: WhiteOperating Temperature (F): -22 to +176Mounting: 1" x 14 Thread MountGround Plane: InternalMaterial: Fiberglass
