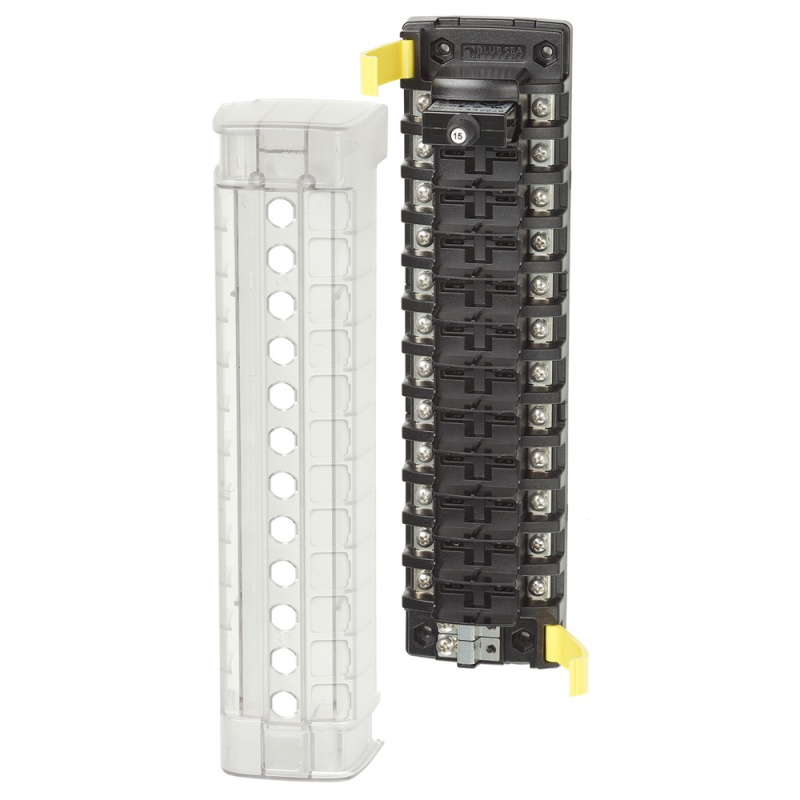

Blue Sea 5051 St Clb Circuit Breaker Block - 12 Position

SKU: CWR-51810
Out of stock
Out of stock
Unit Price
US$ 68.69
Quantity
Out of stock
Options
Amperage
32/40a
Description
ST CLB Circuit Breaker Block - 12 Position

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 12
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Shipping specs
Weight
1.30 Lbs
Dimensions
18" x 5" x 3"
Shipping weight
1.30 Lbs
Shipping from
This product is shipped from our warehouse in , NJ , US
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
