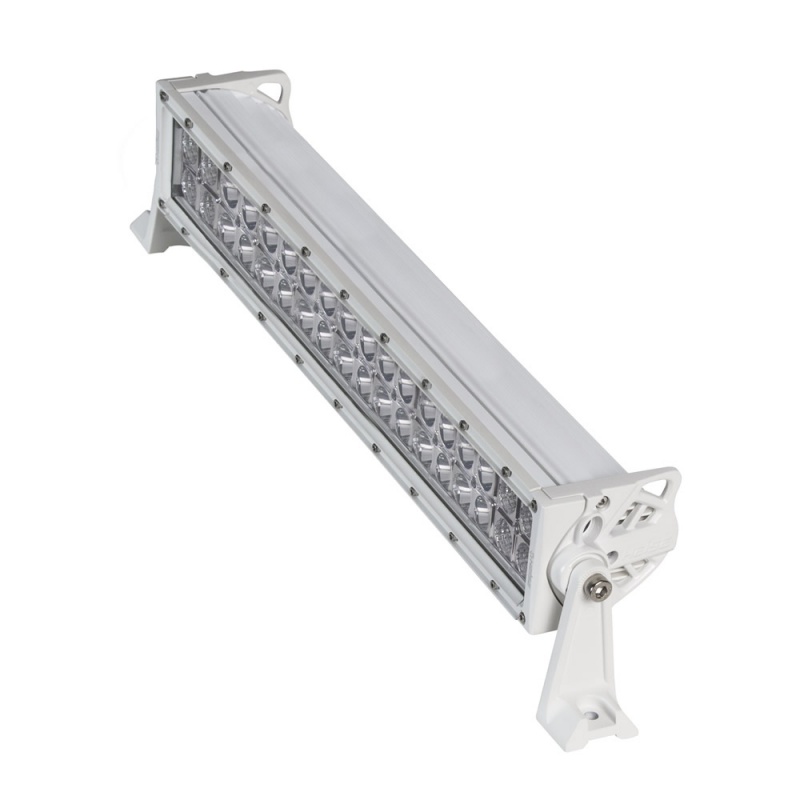

Heise 20" Dual Row Marine Bar

SKU: CWR-76544
Unit Price
Quantity
Subtotal
US$ 263.00
US$ 310.00
US$ 263.00
US$ 310.00
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Brand
Heise Led Lighting Systems
Barcode
086429365203
Description

20" Dual Row Marine Bar

Specifications:

Construction:

Operation:

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

  • Input Voltage: 10-30V
  • Wattage: 108W
  • Raw Lumens: 8640
  • LUX @ 10M: 612
  • Color Temperature: 6000K
  • Beam Pattern: Combo: Flood (90°) / Spot (8°)
  • Housing Material: Die-cast Aluminum Housing
  • Housing Color: White Coating with UV Inhibitors
  • Membrane: Gore™
  • Lens Material: PC
  • Mounting Bracket: Die-cast Aluminum
  • Hole Dimensions: Brackets turned inward - 19.50"
  • Brackets turned outward - 21.75"
  • Mounting Bolt Drill - .25"
  • Height of Light Bar Itself: 4.8"
  • Depth of Light Bar Itself: 3.50"
  • Electronics: Integrated–Epoxy Encapsulated
  • Hardware: Stainless 316
  • Operating Temperature: -40°C to +60°C
  • Current Consumption: 5.7 Amps @ 13.8 Volts
  • IP Rating: IP68
  • Protections: Reverse Polarity
    • Shipping specs
    Weight
    7 lbs
    Dimensions
    27" x 6" x 6"
    Shipping weight
    7 lbs
    Shipping dimensions
    6" x 6" x 27"
    Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
