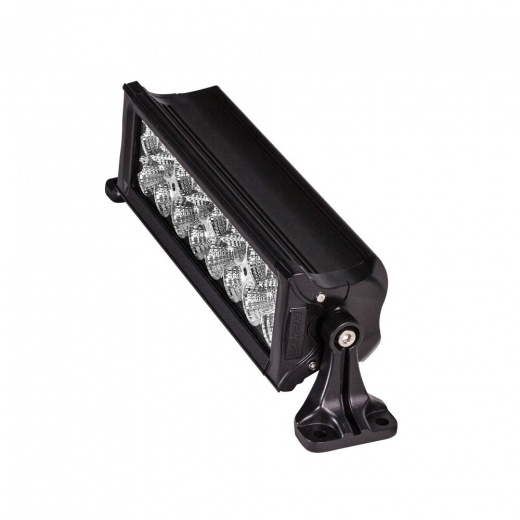

Triple Row LED Light Bar - 10"
SPECS
CONSTRUCTION
OPERATION
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Input Voltage: 10–30V DCWattage: 60W (20–3W OSRAM LEDs)Raw Lumens: 4800LUX @ 10M: 88Color Temperature: 6000KBeam Pattern: 90° FloodHousing Material: Powder Coated AluminumHousing Color: BlackMembrane: Gore™Lens Material: PCMounting Bracket: Die–cast AluminumHole Dimensions: Brackets turned outward — 14"Mounting Bolt Drill – .25"Height of Light Bar Itself: 3.50"Depth of Light Bar Itself: 3.25"Length of Bar w/o Mounting Brackets: 11.50"Electronics: Integrated–Epoxy EncapsulatedHardware: Stainless 316Operating Temperature: –40°C to +60°CCurrent Consumption: 3.2 amps @ 13.8 voltsIP Rating: IP67Protections: Reverse Polarity
