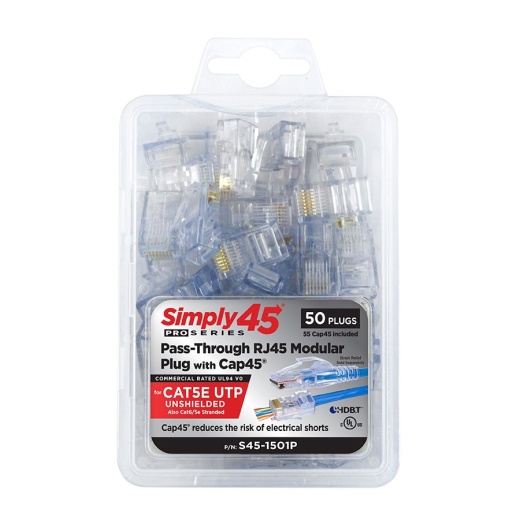

Simply45® PROSeries Unshielded Pass-Through RJ45 Modular Plugs with Cap45®. Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
The 1501P introduces the exclusive Cap45® (PATENT 10,811,831 B1). Cap45® is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45® prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or device sockets that may not be 100% compliant. With Cap45®, any electrical risks associated with exposed wire ends are now eliminated completely.
If you dont want to use Cap45®, no problem. It will not affect plug performance. You just wont have the Cap45® benefits.
Features: Single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar is required. Supports 10GBaseT performance applications over unshielded twisted pair cables Cap45 is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends 3 Prong Pin Design with 50µ of True 24ct Gold Plating True 24ct gold plated pins and is made using the highest quality materials for RJ45 modular plugs Easily to find to identify the items in your bag or kit
Specifications: Quantity: 50 connectors Max Cable OD 6.5mm (0.255″) 24AWG Solid (Cat5e UTP), 28-26AWG Stranded (Cat5e/6 Stranded) Wire Conductors: 0.95 1.05mm/ 0.037″ 0.041″ Performance: ANSI/TIA 568.2-D for Cat6 and Cat6a; ISO/IEC 11801 Class E and Ea Compliance: ANSI/TIA 568.2-D, 1096-A; ISO/IEC 11801, 60603-7, 8877:1992; FCC, UL94 V0 Commercial Rated Dimensions (in/mm): 1.6 x 3.2 x 5.1 in / 41 x 81 x 130 mm Weights (lb/kg): 0.250 lb / 0.113 kg
