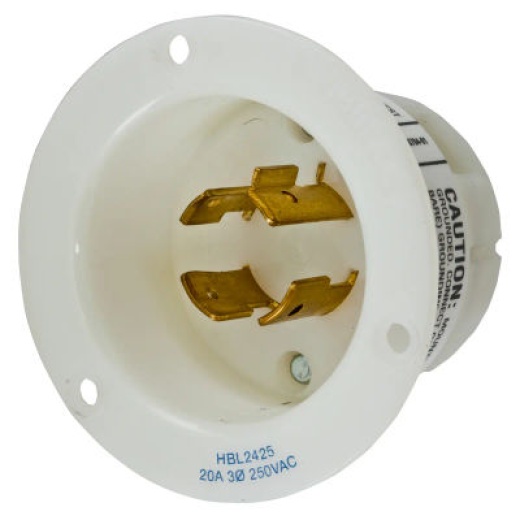

Hubbell Hbl2425 Ac Flanged Inlet Nema L15-20 Male White

SKU: SOL-9141
Unit Price
Quantity
Subtotal
US$ 39.31
US$ 39.31
US$ 39.071%
2
US$ 38.941%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Description
Amperage 20 Amp
Volts 3 Phase 250 Volts
Poles and Wires 3 Pole, 4 Wire Grounding
Configuration Type NEMA L15-20P
Terminal Retainer Material Clear Polycarbonate
Blade Material Brass
Terminal Clamp Material .08 in. (2) Steel-Nickel Plated
Terminal Screw Material #10-32 Brass Multi-Drive
Ground Screw Material #10-32 Brass Multi-Drive
Flanged Casing Material Natural White Nylon
Mounting Screw Material Nickel-Plated Brass Round Head Screws
Dielectric Voltage Withstand 2,000 Volt Minimum
Current Interrupting Certified for Current Interrupting at Full Rated Current
Temperature Rise Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75
Terminal Accommodation #16 AWG to #8 AWG
Terminal Identification Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors
Operating Temperature Maximum Continuous 75°C Minimum -40°C (without impact)
