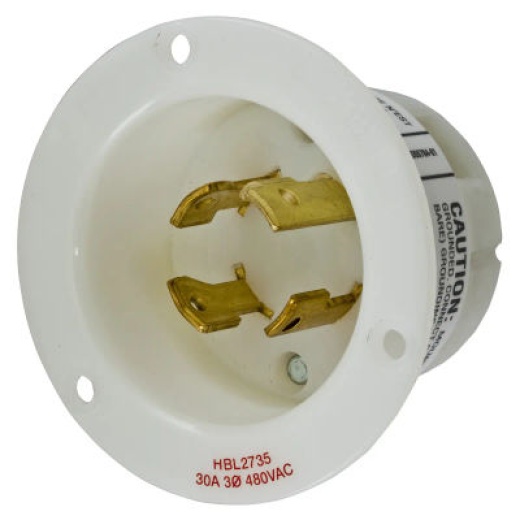

Hubbell Hbl2735 AC Flanged Inlet Nema L16-30 Male White

SKU: SOL-9149
Out of stock
Out of stock
  • 30 Amp, 3 Phase, 480 Volts rating for heavy-duty applications
  • Clear Polycarbonate terminal retainer material for durability
  • Brass blade material for corrosion resistance
  • Certified for current interrupting at full rated current
  • UL 94 VO flammability rating for safe operation
Unit Price
Quantity
US$ 64.67
Out of stock
Description

Product Overview

The Hubbell Hbl2735 AC Flanged Inlet Nema L16-30 Male White is a high-performance electrical connector designed for heavy-duty applications. With a rating of 30 Amp, 3 Phase, 480 Volts, this flanged inlet is suitable for use in industrial, commercial, and residential settings. The device features a clear polycarbonate terminal retainer material that provides durability and resistance to corrosion. The brass blade material ensures excellent conductivity and resistance to wear and tear.

Key Features

This Hubbell AC flanged inlet has a NEMA L16-30 configuration type and comes with a 3 pole, 4 wire grounding system. The terminal clamp material is made of 0.08 in. (2) Steel-Nickel Plated, and the terminal screw material is #10-32 Brass Multi-Drive. The grounding screw material is also #10-32 Brass Multi-Drive. The flanged casing material is made of natural white nylon, and the mounting screw material is nickel-plated brass round head screws.

Safety and Performance

The Hubbell Hbl2735 AC Flanged Inlet Nema L16-30 Male White has a dielectric voltage withstand of 2,000 Volt minimum and is certified for current interrupting at full rated current. The device has a maximum temperature rise of 30°C at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75. The terminal accommodation is #16 AWG to #8 AWG, and the terminal identification is in accordance with UL 498 (X, Y, Z, White, Green).

Operating Conditions

This electrical connector has an operating temperature range of maximum continuous 75°C and minimum -40°C (without impact). The device meets the UL 94 VO flammability rating for receptacles and inlets, and HB or better for plugs and connectors.
