| Amperage | 20 Amp |
| Volts | 480 Volts |
| Poles and Wires | 2 Pole, 3 Wire Grounding |
| Configuration Type | NEMA L8-20P |
| Terminal Retainer Material | Clear Polycarbonate |
| Blade Material | Brass |
| Terminal Clamp Material | .08 in. (2) Steel Nickel Plated |
| Terminal Screw Material | #10-32 Brass, Multiple Drive |
| Ground Screw Material | #10-32 Brass, Multiple Drive |
| Flanged Casing Material | Natural White Nylon |
| Mounting Screw Material | Nickel-plated Brass Round head screws |
| Dielectric Voltage Withstand | 2,000 Volt Minimum |
| Current Interrupting | Certified for Current Interrupting at Full Rated Current |
| Temperature Rise | Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75 |
| Terminal Accommodation | #16 AWG to #8 AWG |
| Terminal Identification | Terminals identified in accordance with UL 498 (X, Y, Z, White, Green) |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Operating Temperature | Maximum Continuous 75°C Minimum -40°C (without impact) |
| Certifications | UL, CSA Listed. |

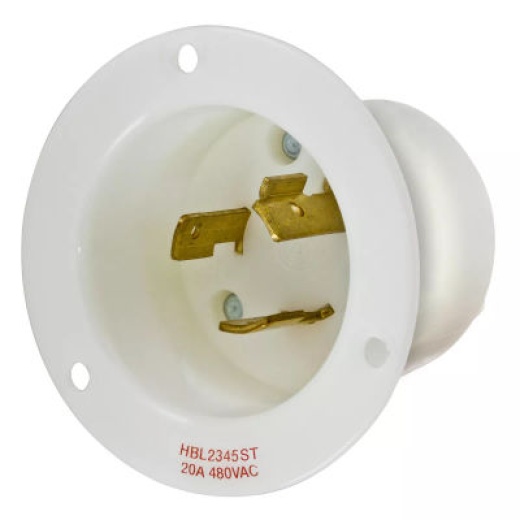

Hubbell Hbl2345 Ac Flanged Inlet Nema L8-20 Male White
SKU: SOL-9039
Unit Price
Quantity
Subtotal
US$ 29.08
US$ 29.08
US$ 28.911%
2
US$ 28.801%
3
Description
Shipping from
This product is shipped from our supplier's warehouse in Creedmoor, NC, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
