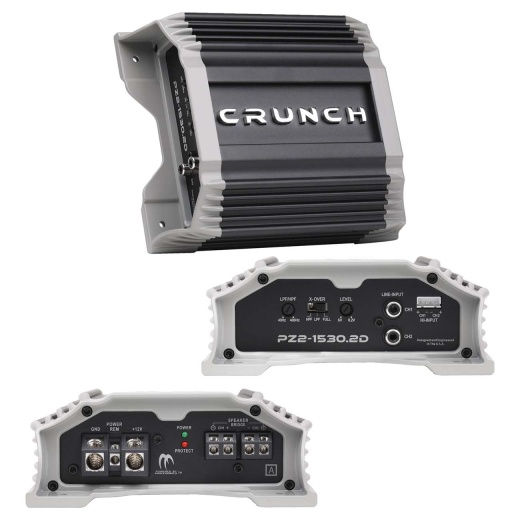

Crunch “POWERZONE 2″ 2 Channel Amplifier, 1500 Watts
Class D Amplifier
1500 Watts Max Power
2 x 750 Watts @ 2 Ohms
2 x 375 Watts @ 4 Ohms
1 x 1500 Watts @ 4 Ohms
Dim: (W x H x L) 7″ × 3.25″ × 11”
External Fuse: 50A (Not Included)
“POWERZONE 2” 2 channel amplifier highlighted with aggressive heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 1500 watts of power in a stereo or bridged mono application.
2 Ohm Stable
Variable High/Low Pass Crossovers: 40Hz – 400Hz (12dB per Octave)
Frequency Response: 10Hz – 22kHz
Total Harmonic Distortion (THD): Speaker Level Inputs
RCA Preamp Inputs
Power Terminal 12V/GND: 4 AWG
Speaker Terminal Wire Gauge: 12 AWG
LED System Protection Circuitry Diagnostics
Weight: 3.3 lbs
QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions.
Rugged MOSFET Pulse Width Modulation power supply. Allows amplifier to product efficient power without taxing the vehicle electrical system.
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
