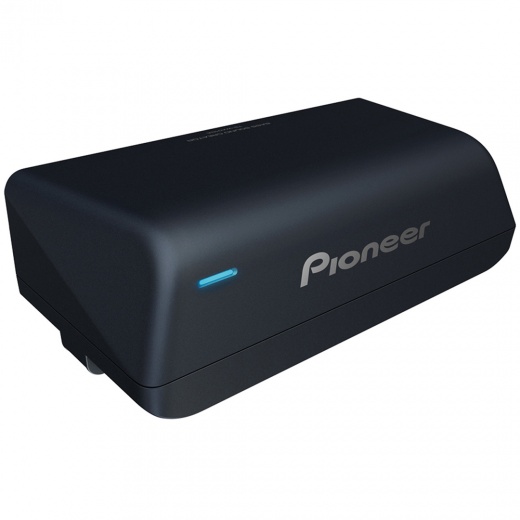

Pioneer 6-5/8″ x 3-1/8″ – Compact Powered Subwoofer – 160 Watts Max
160 Watts MAX
50 Watts RMS
Class D Amplifier
2- Way Easy Installation (Vertical / Horizontal)
Down Firing Subwoofer System
Compact Design
Small Footprint with High Efficiency
Bass Sound Creator
Hi/Low Level Inputs
Sensitivity (1W/1M): 98 dB (In car, installed at the foot space)
Frequency Range: 20 Hz to 200 Hz
CTA-2031 Compliant
Input Level (@ Gain Max) RCA: 70mV+70mV/22kOhm
Input Level (@ Gain Max) Speaker Line: 1.4V+1.4V/5KOhm
Power Source: DC 14.4V
Amp Max Current Consumption: 4.2 A
Grounding: Negative
Woofer Shape – Oval: 6-5/8″ x 3-1/8″
Cellulose Fiber Cone
Aluminum Drive Cone
Rolled Urethane Surround
Stamped Metal Basket
9.5 oz Ferrite Magnet Material
Single Voice Coil
Glass imide Voice Coil Bobbin
Copper Voice Coil Wire
Aramid Damper
DIM: (W x H x D) 9″ x 2-3/4″ x 4-5/8″
