Digital Antenna Wideband Cellular Antenna 4G/5G/Lte/Wifi 9Dbi Omni W/Bracket

SKU: CWR-96326
Out of stock
Out of stock
Unit Price
Quantity
US$ 234.24
Out of stock
Options
Barcode
839494004863
Description

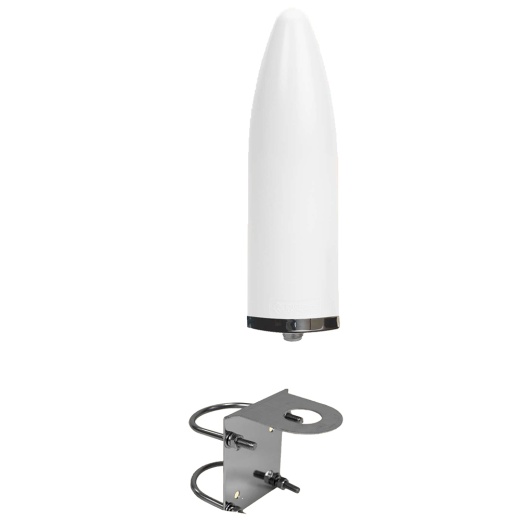

Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket

Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.

9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.

Available in 4 stainless steel mounting options: L-Bracket, 1" x 14 Threads, Deck Mount, and Raised Deck Mount

REQUIRED (NOT INCLUDED) 50ohm coaxial cable to connect the antenna to a cellular device, cellular booster, cellular modem, or WiFi router.

Applications:

Features:

Specifications:

  • Commercial
  • Recreational
  • Government
  • Marine
  • Land
  • Maximum power for 4G, 5G, WiFi signals
  • 9dBi omni-directional gain
  • Rugged UV stable polyurethane finish
  • Foam filled to withstand extreme vibrations
  • 316 stainless steel base
  • Includes L bracket & U-Bolts
  • Weatherproof N female connector
  • 5-year warranty
  • Radiation Pattern Omni-Directional
  • Gain 9dBi
  • Bandwidth VSWR (3G, 4G, 5G, WiFi) <1.5: 1 = 614-3000 MHZ
  • Cable Not Included
  • Impedance 50 ohms
  • Max Input Power 50 watts
  • Exterior Finish White polyurethane high gloss UV stable
  • Dimensions 8.875" L x 2.375" OD (225 x 60 mm
  • Weight 15 oz
  • RF Connector N type female
  • Installation Stainless Steel L bracket for pole/wall
  • Elements Copper - Hand soldered
  • Polarization Vertical
  • Wind Rating >160KPH
  • Operating Temp 30º F to +175º F
  • Warranty 5 Years
  • Compliance RoHS compliant
  • Shipping specs
    Shipping weight
    1.15 lbs
    Shipping dimensions
    4" x 3" x 13"
    Shipping from
    This product is shipped from our supplier's warehouse in NJ, United States
    Our guarantee
    This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
    A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
