The TTK 825 kit provides test technicians and contractors with an all-in-one solution to their fiber optic testing needs. With automated testing capability and full wireless control, this kit ensures that fiber optic test results can be gathered quickly and reported using simple, efficient processes.
The included VIS 500 wireless inspection scope features a fully automated inspection process with the click of a button. The scope will automatically focus, center, zoom, analyze, and even save the analyzed image for reporting in a matter of seconds. The RP 560 optical power meter provides users with a simple platform for testing fiber optic cables at all connection points in the network. Capable of displaying and testing 2 wavelengths at once, the RP 560 cuts dB loss testing time in half when used with the DLS 655 laser light source. The power meter automatically detects the wavelength output from the light source and displays the output power/loss for each detected wavelength.
The TTK 825 is an all inclusive test kit designed for the most common fiber architectures found in the wireless telecom industry. The insertion (dB) loss system for single-mode loopback configurations allows users to gather test results and create simple reports for closeouts.
Features:- Automated image centering and analysis compliant with IEC 61300-3-35 standards
- Bluetooth OPM with various standard calibrated wavelengths
- Automatic Wavelength detection for testing 2 wavelengths simultaneously
- All compatible with the easy-to-use in Spec platform available for free download via Google Play, Apple App store, or our website
- Instant report creation with user-defined parameters in a number of report formats
- All included devices and accessories are focused on testing fiber optic cable � from FTTH & FTTA to Data Centers and Wireless Towers
- Wavelengths: 1310 nm, 1550 nm
- dB Loss: SM
- Fiber Compatibility: Single Mode
- Tool Case Included: Yes
- FOV (Field of View): 860μm x 640 μm
- Resolution: < 1 Micron
- Lighting Technique: Coaxial
- Connector: USB 2.0 Micro Type B (Charging only)
- Tip Style: Interchangeable
- Battery: Lithium Ion
- Battery Life: 4 to 5 Hours Continuous
- Battery Charge Time: <4 hours
- Dimensions: 10.1′′ x 2.6′′ x 1.5′′ (25.65 x 6.6 x3.81cm)
- Weight: 10.4oz (294.8g)
- Operating Temperature: 0� to 50� C
- Storage Temperature: -20� to 60� C
- Wavelength Range: 850 nm to 1625 nm
- Calibrated Wavelengths: 850 / 1300 / 1310 / 1490 / 1550 / 1611 / 1625nm
- Measurement Range: +6 to -70 dBm
- Resolution: 0.01 dB
- Results Displayed: dB/dBm
- Detector Type: Indium Gallium Arsenide (InGaAs)
- Optical Interface: 2.5 mm Universal and LC adapter included
- Absolute Accuracy: �0.25 dB (0dBm, 22�C to 25�C)
- Display: LCD
- Tone ID: 2kHz, 1kHz, 330Hz, 270Hz
- Storage: 10,000+ Measurements, 4 Storage Folders
- Data Transfer: Micro USB or Bluetooth
- Power: Push Button Toggle / Auto Off
- Battery: AA - 2 Alkaline Batteries included
- Dimensions: 2.3′′ x 8.46′′ x 1.18′′ (5.8 x 21.5 x 3 cm)
- Weight: 6 oz (170.1 g)
- Wavelength: 1310nm & 1550nm
- Power: Push Button Toggle / Auto-OFF
- Output Power: -5.0 dBm
- Battery: AA - 2 Alkaline Batteries Included
- Output Stability: �0.05dB (1 Hour), �0.03dB Long-Term (15 min warm-up)
- Operating Temperature: -10� to +50� C
- Spectral Width: 5nm / 5nm
- Storage Temperature: -30� to +60� C
- Optical Interface: SC/FC/ST/LC Interchangeable
- Dimensions: 2.3′′ x 8.46′′ x 1.18′′ (5.8 x 21.5 x 3 cm)
- Tone Output: 2 kHz, 1kHz, 330Hz, 270Hz
- Weight: 6 oz (170.1 g)
- Laser Class: Class 1 (FDA 21 CFR 1040.11)

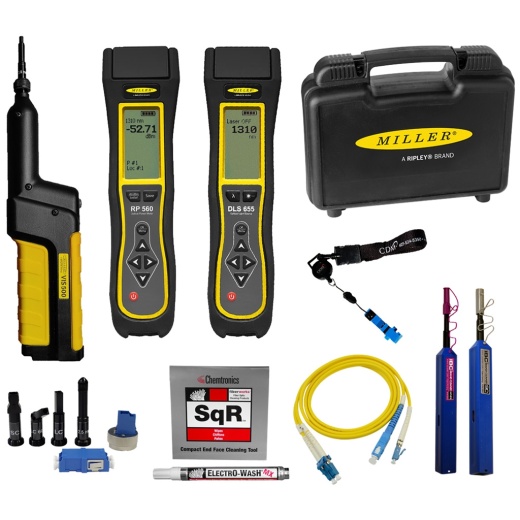

- RP 560 Optical Power Meter
- DLS 655 Dual Laser Source
- VIS 500 Fiber Inspection Scope
- 1.25mm OneClick Cleaner
- 2.5mm OneClick Cleaner
- Hard Carry Case
- Singlemode Loopback
- SQR Pad & Fiber Wash Liquid
- Duplex Fiber Jumper
- LC Adapter for OPM
- LC Duplex Bulkhead
- LC-60 Degree Inspection Adapter
- LC Bulkhead Inspection Adapter
- SC Bulkhead Inspection Adapter
- 1.25mm Inspection Adapter
- 2.5mm Inspection Adapter
- USB Data Transfer Cable
Specifications:
VIS500 Inspection Scope Probe Specifications:
RP560 Power Meter Specifications:
Dual Singlemode Laser Source Specifications:
Kit Includes:
