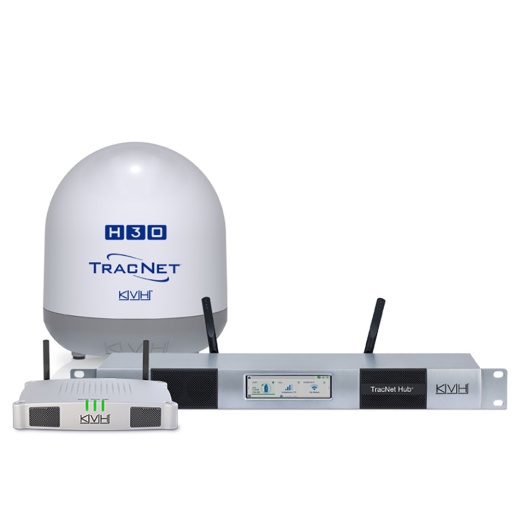

TracNet™ H30 Ku-Band Antenna with TracNet Hub
The TracNet™ H30 provides the fastest, most reliable connectivity with the KVH ONE™ hybrid network. The groundbreaking, ultra-compact TracNet H30 includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication options at all times, in all sea states.
*Subscription required
KVH ONE Hybrid Network
Features:
Technical Specifications:
Global HTS Ku-band satellite network, with 276 million sq km (106+ million sq miles) of coverage, powered by IntelsatCellular support in 150+ countries as far as 32+ km (20+ miles) offshoreCompatible with shore-based Wi-Fi networksAutomatically switches to the best connectivity option based on cost, data quality, and moreHybrid connectivity options (VSAT, Cellular, and WiFi)Stabilization - Two-axis, stabilized skewSingle cable install with DC and AC power BDUs (below deck units)Cybersecurity - Integrated terminal and network security; optional enterprise-level upgradeUp to 51% lighter than competitive systemsFor boats 30+ feet (9+ meters)Ultra-high efficiency antenna using KVH’s RingFire™ design and groundbreaking dielectric rod feed for excellent reception even in bad weatherDome Diameter - 14.5" (36.8cm)Dome Weight - 24.6 lbs (11.1 kg)Maximum Speed Download/Upload - as fast as 6 Mbps/2 Mbps (down/up)Elevation/Azimuth Range - 7.7° to 75°/Unlimited rotationOperating Temperature - -22°F to 131°F (-30°C to 55°C)Power Source - DC provided by the TracNet Hub or Hub+Single coax cable connection
