Armored Om1 Corning Optical Fiber

SKU: CBW-21F3-212NF
  • Fiber Count: 12 cores
  • Fiber Type: Corning® InfiniCor® 300
  • Cable Type: 900um Tight Buffered
  • Buffer Material: PVC
  • Strength Member: Aramid Yarn
  • Armor: Spiral Steel
  • Cable Color: Black
  • Jacket Rating: Plenum Rated
  • Core Size: 62.5um
  • Wavelength: 850nm / 1300nm
  • Max. Attenuation: 3.5 / 1.5 dB/km
  • Bandwidth(EMB): 850nm: 200MHz
  • Cladding diameter(um): 125±2.0
  • Core-Clad Concentricity: ≤1.5 um
  • Cladding non-circularity(%): ≤0.1.0
  • Coating-Cladding Concentricity(um): ≤12.0
  • Coating diameter(um): 242±5
  • Core diameter(um): 62.5±2.5um
  • Effective Group Index of Refraction(Neff)850nm:1.4961300nm:1.491
  • 850nm:1.496
  • 1300nm:1.491
  • Fatigue Resistance Parameter(Nd): 20
  • Temperature Dependence: -60~85°C
  • Temperature-humidity cycling: -10 to +85°C,98% R.H.
Unit Price
Quantity
Subtotal
US$ 1,258.28
US$ 1,258.28
US$ 1,250.731%
2
US$ 1,246.311%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Color
Black
Warranty
5 Years
Length
500 feet
End 1
Bare end
End 2
Bare end
Part #
21F3-212NF
Description

Our Steel Armored Fiber Optic Cable features jacket.

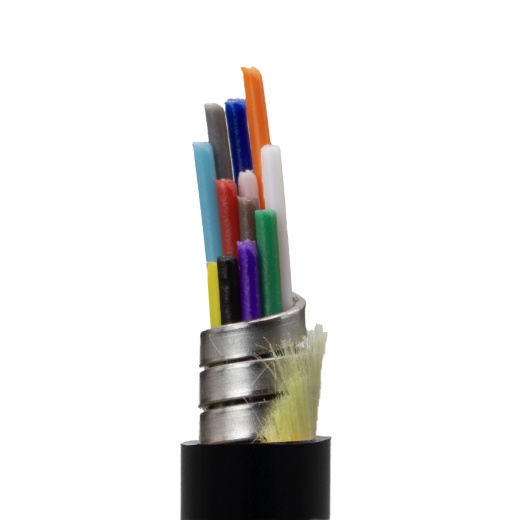

This armored cable consists of 0.9mm tight buffered fiber surrounded by an Aramid yarn (similar to Kevlar®) strength member. The core is protected by a spiral-wrapped steel tube that offers an easy installation, rodent protection, and high crush, pressure, and tension resistance during installation and deployment. Outdoor Plenum rated cabling is primarily used for outside plant (OSP) applications typically bridging into the build/plant, it can be Installed in walls, between floors, under data center floors, in plenum air handling ducts, and of course on outside walls.


Common Applications include Fiber To The Home (FTTH) access networks, Telecommunication Networks, CCTV Networks, Data communications Networks, Local Area Networks, and more.


Shipping specs
Weight
30.00 lbs
Shipping from
This product is shipped from our supplier's warehouse in Livermore, CA, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
