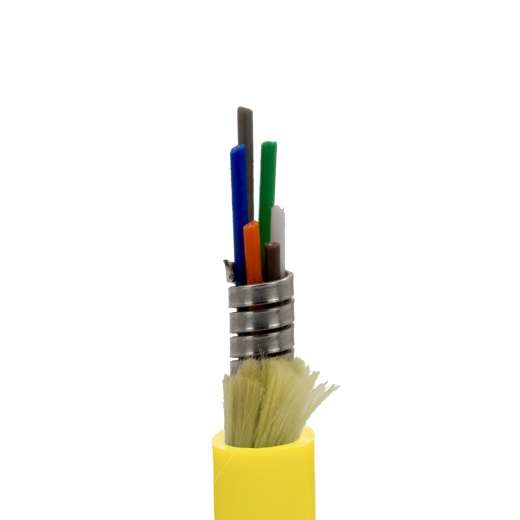

Armored OS2 Corning Optical Fiber

SKU: CBW-21F2-006NF
  • Rodent resistant spiral steel armor for maximum protection
  • 6 strands of OS2 9/125um Singlemode core for high speed data transmission
  • Yellow plenum rated jacket for indoor installation
  • 0.9mm tight buffered fiber for easy installation and deployment
  • Aramid yarn strength member for high crush, pressure, and tension resistance
Unit Price
Quantity
Subtotal
US$ 448.99
US$ 448.99
US$ 446.301%
2
US$ 444.721%
3
Congratulations! You got a great price!
Add to cart Added
Checkout
Options
Color
Yellow
Warranty
Lifetime
Length
500 feet
End 1
Bare end
End 2
Bare end
Part #
21F2-006NF
Barcode
846568052187
Description

High Quality Armored OS2 Corning Optical Fiber

Our Steel Armored Fiber Optic Cable is designed to provide maximum protection and reliability in high speed data transmission applications. Featuring 6 strands of OS2 9/125um Singlemode core, this cable is ideal for use in Fiber To The Home (FTTH) access networks, Telecommunication Networks, CCTV Networks, Data communications Networks, Local Area Networks, and more. The rodent resistant spiral steel armor provides maximum protection against rodent damage, while the 0.9mm tight buffered fiber ensures easy installation and deployment. The yellow plenum rated jacket is suitable for indoor installation in walls, between floors, in plenum air handling ducts, and under data center floors.

Key Features and Benefits

Our Armored OS2 Corning Optical Fiber Cable has several key features that make it an ideal choice for high speed data transmission applications. The cable features a tight buffered fiber design that is easy to install and deploy, while the spiral steel armor provides maximum protection against rodent damage and physical stress. The Aramid yarn strength member adds an extra layer of protection against crush, pressure, and tension. The yellow plenum rated jacket is suitable for indoor installation and meets all relevant industry standards for safety and performance.

Technical Specifications

Our Armored OS2 Corning Optical Fiber Cable has the following technical specifications: Fiber Count: 6 cores, Fiber Type: Corning SMF-28 Ultra, Cable Type: 900um Tight Buffered, Buffer Material: PVC, Strength Member: Aramid Yarn, Armor: Spiral Steel, Cable Color: Yellow, Jacket Rating: Plenum Rated, Core Size: 9um, Wavelength: 1310nm / 1550nm, Max. Attenuation: 0.5 / 0.4 dB/km, Cladding diameter(um): 125±0.7, Core-Clad Concentricity: ≤0.5 um, Cladding non-circularity(%): ≤0.7, Coating-Cladding Concentricity(um): ≤12, Coating diameter(um): 242±5, Core diameter(um): 8.2, Effective Group Index of Refraction(Neff) 1310nm:1.4676 1550nm:1.4682, Fatigue Resistance Parameter(Nd): 20, Temperature Dependence: -60~85°C, Temperature-humidity cycling: -10 to +85°C,98% R.H.

Why Buy from Us?

When you buy from us, you can be assured of getting a high quality Armored OS2 Corning Optical Fiber Cable that meets all relevant industry standards for safety and performance. We offer a 5-year warranty on our cables, and our experienced customer service team is always available to answer any questions you may have. We offer competitive pricing and fast delivery, making us the ideal choice for all your fiber optic cable needs.

Order Now and Get Fast Delivery

Order our Armored OS2 Corning Optical Fiber Cable now and get fast delivery. We offer a 5-year warranty on our cables, and our experienced customer service team is always available to answer any questions you may have. Don't settle for low quality cables that can compromise your data transmission speeds. Order now and get the best Armored OS2 Corning Optical Fiber Cable for your application.

Shipping specs
Weight
23 lbs
Shipping from
This product is shipped from our supplier's warehouse in Livermore, CA, United States
Our guarantee
This product is brand new and includes the manufacturer's warranty, so you can buy with confidence.
Return policy
A 25% handling charge is levied against all authorized returns except those due to our error. Unauthorized returns are subject to a 40% handling charge. Damages & defects must be reported to us within 14 days.
