High-Quality Armored Optical Fiber Cable

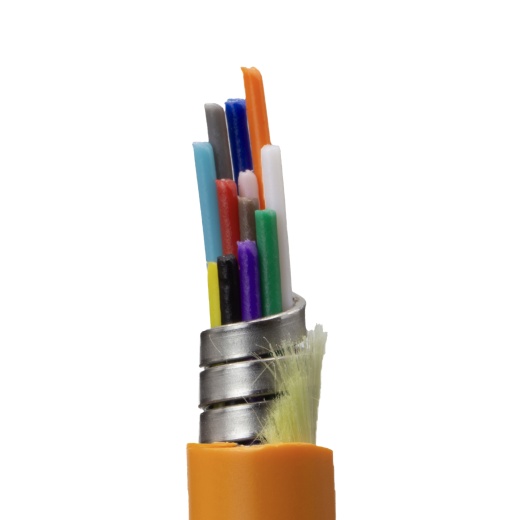

Our Steel Armored Fiber Optic Cable is designed for demanding applications that require high-speed data transmission, reliability, and durability. With 12 strands of OM1 62.5/125um Multimode core, this armored cable ensures fast data transmission over long distances. The rodent resistant spiral steel armor provides high crush and pressure resistance, making it ideal for indoor installation in walls, between floors, and under data center floors.
Reliable Performance in Challenging Environments
The armored cable is built to withstand the rigors of daily use, with a 5-year warranty that ensures long-term reliability. The orange riser rated jacket is designed for indoor installation, and the tight buffered fiber and aramid yarn strength member make installation a breeze. With its high bandwidth and low attenuation rate, this armored cable is perfect for applications such as Fiber To The Home (FTTH) access networks, Telecommunication Networks, CCTV Networks, Data communications Networks, and Local Area Networks.
Advanced Features for Demanding Applications
Our Steel Armored Fiber Optic Cable features advanced specifications that make it suitable for demanding applications. The Corning InfiniCor 300 fiber core provides high bandwidth and low attenuation, while the 900um tight buffered design ensures easy installation and low signal loss. The PVC buffer material and aramid yarn strength member provide additional protection and durability.
Technical Specifications
This armored cable meets the following technical specifications: Fiber Count: 12 cores; Fiber Type: Corning InfiniCor 300; Cable Type: 900um Tight Buffered; Buffer Material: PVC; Strength Member: Aramid Yarn; Armor: Spiral Steel; Cable Color: Orange; Jacket Rating: Riser Rated; Core Size: 62.5um; Wavelength: 850nm / 1300nm; Max. Attenuation: 3.5 / 1.5 dB/km; Bandwidth (EMB): 850nm: 200MHz; Cladding diameter (um): 125±2.0; Core-Clad Concentricity: ≤1.5 um; Cladding non-circularity (%): ≤0.1.0; Coating-Cladding Concentricity (um): ≤12.0; Coating diameter (um): 242±5; Core diameter (um): 62.5±2.5 um; Effective Group Index of Refraction (Neff) 850nm:1.496 1300nm:1.491; Fatigue Resistance Parameter (Nd): 20; Temperature Dependence: -60~85°C; Temperature-humidity cycling: -10 to +85°C, 98% R.H.
Buy with Confidence
When you buy our Steel Armored Fiber Optic Cable, you can be confident that you're getting a high-quality product that meets the highest standards of performance and reliability. With its advanced features, technical specifications, and 5-year warranty, this armored cable is the perfect solution for your fiber optic needs. Buy online now and experience the difference for yourself!
